Self-hosted Runner

References

Overview

This document explains the relationship between Target Runner and a GitHub self-hosted runner.

Key points:

  • Target Runner is the logical execution owner for a TEST request
  • the execution owner can be a GitHub Actions self-hosted runner, a remote worker, a lab node, or a dedicated test machine
  • in this repository, Target Runner is used as a broader routing name
  • when possible, align Target Runner with the GitHub runner label

Interpretation:

  • document view
  • Target Runner = execution node responsible for the TEST request
  • GitHub Actions view
  • self-hosted runner = execution node that receives the job from GitHub

Quick Start

  1. Open Settings > Actions > Runners in the GitHub repository.
  2. Select New self-hosted runner.
  3. Choose the runner image and architecture.
  4. Run config.cmd and complete registration.
  5. Use runs-on with self-hosted and the project label.

Recommended mapping for this repository:

  • Target Runner: local-dev
  • runner label: local-dev

Connected to GitHub

Current runner version: '2.333.1'
2026-04-20 05:30:21Z: Listening for Jobs

The simplest rule is to use the same value for the GitHub runner label and the TEST request Target Runner.

Example:

  • local machine role: local-dev
  • GitHub runner label: local-dev
  • TEST request Target Runner: local-dev

Benefits:

  • easier Issue routing
  • easier Actions routing
  • less naming ambiguity

Connect My PC

1. Prepare Runner Directory

This document assumes the runner workspace is placed inside the repository root.

cd D:\works\projects\local-ai-agent-mcp
mkdir action-runner
cd .\action-runner

Reasons:

  • easier local path management
  • repository path and runner path stay aligned
  • simpler explanation for logs and scripts

Notes:

  • action-runner is usually not tracked by Git
  • add it to .gitignore if needed

2. Get Registration Commands from GitHub

Repository path:

  • Settings
  • Actions
  • Runners
  • New self-hosted runner

Runner release reference:

3. Set Runner Name and Labels

During config.cmd, GitHub asks for:

  • runner group
  • runner name
  • labels
  • service installation choice
Target Runner Meaning
local-dev_00 developer-managed local execution environment
qemu-runner emulator-based test environment
lab-node-01 hardware lab node
windows-hw-01 Windows hardware test node

Administrator privileges are recommended.

--------------------------------------------------------------------------------
|        ____ _ _   _   _       _          _        _   _                      |
|       / ___(_) |_| | | |_   _| |__      / \   ___| |_(_) ___  _ __  ___      |
|      | |  _| | __| |_| | | | | '_ \    / _ \ / __| __| |/ _ \| '_ \/ __|     |
|      | |_| | | |_|  _  | |_| | |_) |  / ___ \ (__| |_| | (_) | | | \__ \     |
|       \____|_|\__|_| |_|\__,_|_.__/  /_/   \_\___|\__|_|\___/|_| |_|___/     |
|                                                                              |
|                       Self-hosted runner registration                        |
|                                                                              |
--------------------------------------------------------------------------------

# Authentication

Connected to GitHub

# Runner Registration

Enter the name of the runner group to add this runner to: [press Enter for Default]
Enter the name of runner: [press Enter for JHLEE] local-dev_00
This runner will have the following labels: 'self-hosted', 'Windows', 'X64'
Enter any additional labels (ex. label-1,label-2): [press Enter to skip] local-dev

Runner successfully added

# Runner settings

Enter name of work folder: [press Enter for _work]

Settings Saved.

Would you like to run the runner as service? (Y/N) [press Enter for N]

Example:

runner name: my-pc
labels: self-hosted, Windows, X64, local-dev

The important part is adding a project-specific label such as local-dev.

4. Choose How to Run It

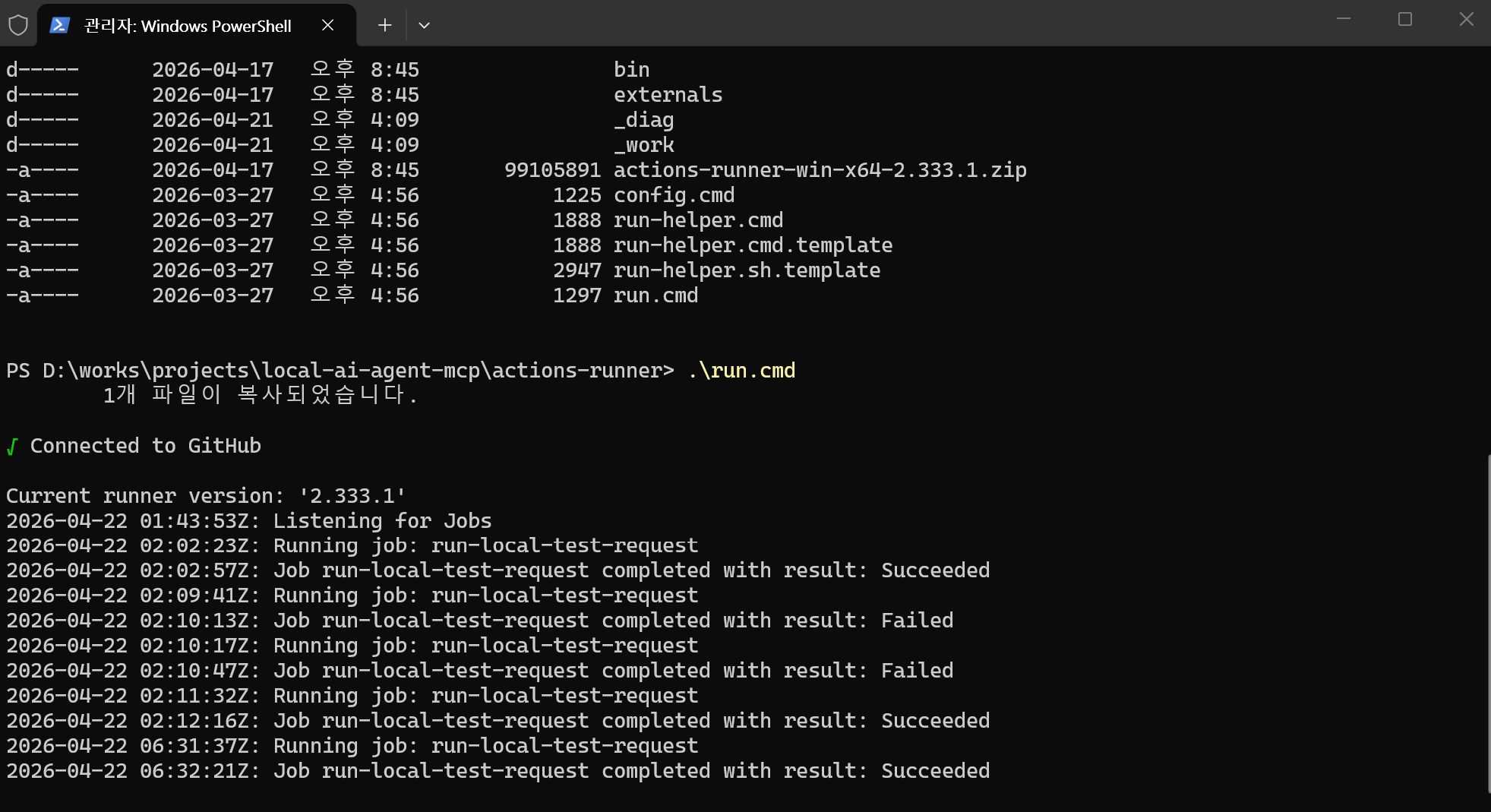

For a quick check, run it directly from the action-runner directory:

.\run.cmd

To keep it available after reboot, install it as a service:

.\svc install
.\svc start

Running as a service keeps the runner available after logout.

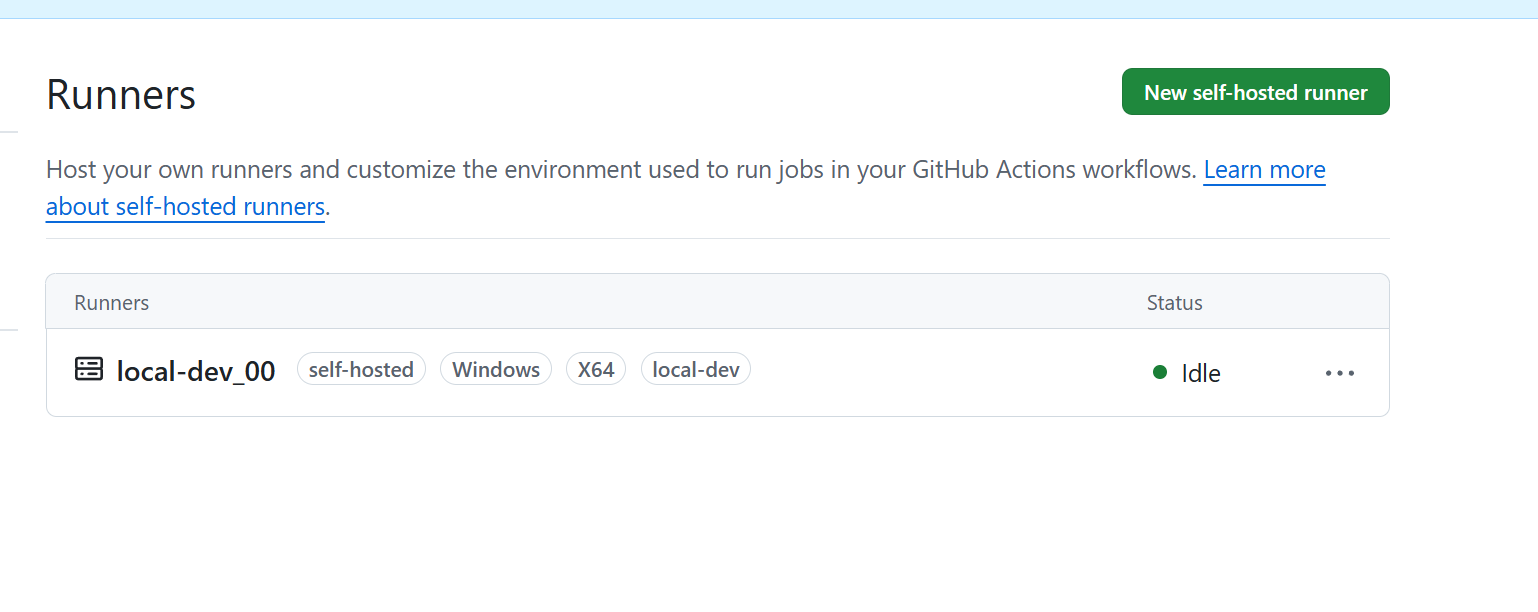

5. Verify Runner Status in GitHub

After registration, the runner should appear as Idle or Online in Settings > Actions > Runners.

If not, check:

  • firewall or proxy restrictions
  • expired registration token
  • whether run.cmd or the service is actually running
  • whether the label matches the expected value

Workflow Mapping

Registering a runner is not enough. A workflow must explicitly target that runner.

Example:

jobs:
  test-on-local-dev:
    runs-on: [self-hosted, local-dev]
    steps:
      - uses: actions/checkout@v4
      - name: Show runner
        run: echo "running on self-hosted local-dev"

runs-on: [self-hosted, local-dev] means GitHub selects only a runner that has both labels.

Current Repository Status

Current repository workflows:

  • .github/workflows/github_pages.yaml
  • .github/workflows/test_request_local.yaml

Current TEST automation path:

  • test_request_local.yaml uses a self-hosted runner
  • current label expectation is local-dev

Issue-Based Flow

GitHub Issue
  -> resolve Target Runner
  -> selected Runner or Worker processes the request
  -> Local MCP tool execution
  -> logs + result.json
  -> GitHub Issue comment

In this model, Target Runner is not just metadata. It is an execution ownership and routing key.

Mapping Strategy

Recommended mapping:

  • Issue Target Runner: local-dev
  • GitHub Actions self-hosted runner label: local-dev

This keeps human routing and workflow routing aligned.

Multiple Runners

Target Runner can be a single value or a comma-separated candidate list.

Recommended rules:

  • use a single runner by default
  • use a comma-separated list only when needed
  • interpret multiple values as OR

Example:

Target Runner: qemu-runner, lab-node-01

Meaning:

  • either qemu-runner or lab-node-01 may process the request
  • the first claimer handles it

Ownership Rules

When multiple runners exist, the minimum coordination rules are:

  1. Each TEST request must declare Target Runner.
  2. Each runner should pick only executable requests.
  3. Claim the request with an assignee or label when work starts.
  4. Record completion with labels such as test-done or test-failed.

Suggested labels:

  • test-request
  • test-running
  • test-done
  • test-failed

Relationship with MCP

A self-hosted runner is not the same thing as an MCP Server.

Roles:

  • Runner or Worker
  • execution environment for the TEST request
  • Local MCP Server
  • tool interface exposed in the execution environment
  • GitHub MCP Server
  • interface for Issue, comment, and status operations on GitHub

Practical flow:

GitHub Issue
  -> Runner or Worker
  -> request inspection through GitHub integration
  -> Local MCP Server tool execution
  -> result generation
  -> result reporting back to GitHub

In this repository, the safest interpretation is:

  • now
  • Target Runner is a logical execution node name
  • later
  • it can map 1:1 to a GitHub Actions self-hosted runner label

For a local machine, a stable label such as local-dev is the simplest operating model.
