Local MCP Server

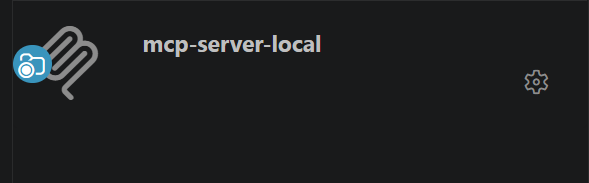

VS Code Extension -> MCP Servers

Overview


This document describes the Local MCP Server structure used in the local environment and the GitHub Issue based TEST request flow.

Current repository design:

  • one shared Local MCP core
  • two entrypoints
  • mcp.server_local_direct.server
  • mcp.server_local_runner.server

Shared runtime and tool definitions are under mcp/server_local/.

mcp/
  scripts/
    make_test_result.py
    run_test_request.py
  server_local/
    runtime.py
    toolsets.py
  server_local_direct/
    server.py
  server_local_runner/
    server.py

The key difference is the startup path, not the codebase.

Mode Start Main Context
direct started directly by a VS Code MCP client local development, direct MCP test
runner started through the GitHub Actions Issue flow on a self-hosted runner GitHub Issue based automated test

Local MCP Server Configuration Entry

  • The AI Agent Local MCP Server is configured in .vscode/mcp.json.
  • VS Code reads this file and starts the configured Python MCP Server process.
  • The current configuration registers only mcp-server-local-direct.
  • Issue-based Runner and Jenkins CT start their MCP Server through the Python Bridge, not .vscode/mcp.json.


Local MCP Server Configuration


.vscode/mcp.json is the repository configuration used by VS Code to register and start the Local MCP Server for an AI Agent.

Current configuration:

{
  "servers": {
    "mcp-server-local-direct": {
      "command": "python",
      "args": [
        "-m",
        "mcp.server_local_direct.server"
      ],
      "cwd": "${workspaceFolder}"
    }
  }
}
Field Current Value Role
Server ID mcp-server-local-direct name exposed to the VS Code MCP Gateway
command python starts the Python interpreter
args -m mcp.server_local_direct.server starts the Direct MCP entrypoint
cwd ${workspaceFolder} uses the repository root as the working directory
flowchart TD
    Agent["AI Agent"]
    Gateway["VS Code MCP Gateway"]
    Config[".vscode/mcp.json"]
    DirectMCP["mcp-server-local-direct"]
    Runtime["Shared MCP Runtime<br/>runtime.py"]
    SharedTools["Shared TEST Tools<br/>toolsets.py"]
    Result["MCP Tool Result"]

    Agent -->|tool request| Gateway
    Config -->|register and start| Gateway
    Gateway --> DirectMCP --> Runtime --> SharedTools --> Result
    Result -->|tool result| Gateway --> Agent

    classDef config fill:#d0ebff,stroke:#1971c2,stroke-width:3px,color:#000;
    classDef sharedTools fill:#fff3bf,stroke:#f08c00,stroke-width:4px,color:#000;
    class Config config;
    class SharedTools sharedTools;

Extending the Local MCP Configuration

  • Add another entry under servers when VS Code must start an additional MCP Server.
  • Keep the module path in args aligned with the intended MCP Server entrypoint.
  • Add third-party Shared TEST Tool packages to mcp_requirements.txt before starting VS Code.


Current Flows - direct


This path does not require GitHub Actions or a self-hosted runner.

VS Code MCP Gateway
  -> mcp-server-local-direct
  -> local MCP tools
  -> log files + tool result payload

Main purpose:

  • local development
  • direct MCP client test
  • manual tool verification

Entrypoint:

  • python -m mcp.server_local_direct.server

VS Code configuration source:

  • .vscode/mcp.json

Current server entry:

{
  "servers": {
    "mcp-server-local-direct": {
      "command": "python",
      "args": ["-m", "mcp.server_local_direct.server"],
      "cwd": "${workspaceFolder}"
    }
  }
}


Flow


flowchart TD
    A["VS Code MCP Gateway"] --> B["mcp-server-local-direct"]
    B --> C["Local tools"]
    C --> D["log files + tool result payload"]


Current Flows - runner


This path requires GitHub Actions and a self-hosted runner.

GitHub Issue
  -> GitHub Actions workflow
  -> Python bridge (mcp.scripts.run_test_request)
  -> mcp-server-local-runner
  -> results/logs/mcp/server_local + results/*.json
  -> GitHub Issue comment

Current workflow:

  • .github/workflows/test_request_local.yaml

Current runner requirement:

  • runs-on: [self-hosted, local-dev]

This means Issue-based test requests work only when a self-hosted runner with the local-dev label is online.

Important points:

  • server_local_direct can run without GitHub Actions
  • however, the Issue -> Action -> result comment path requires a self-hosted runner because the workflow executes there


Flow


flowchart TD
    A["GitHub Issue<br/>Test Request"] --> B["GitHub Actions"]
    B --> D["Self-hosted Runner<br/>[self-hosted, local-dev]"]
    D --> E["Python bridge<br/>mcp.scripts.run_test_request"]
    E --> F["mcp-server-local-runner"]
    F --> G["selected tools"]
    G --> I["results/logs/mcp/server_local<br/>results/*.json"]
    I --> C["GitHub MCP Server"]
    C --> H["Comment result on issue"]


Flow Decision


Use direct when:

  • a VS Code or local client should start the Local MCP Server directly
  • GitHub Issue automation is not needed
  • the server should be verified quickly

Use the Issue-based runner flow when:

  • execution should start from a GitHub TEST Request Issue
  • results should remain as artifact, JSON, log, and Issue comment
  • routing to a specific self-hosted runner is required


Test Request Flow


Current automated TEST Request flow:

GitHub Issue
  -> test_request_local.yaml
  -> mcp.scripts.run_test_request
  -> selected local MCP server
  -> selected tools
  -> results JSON + log files
  -> GitHub Issue result comment


Request Source


Issue body format source:

  • .github/ISSUE_TEMPLATE/test_request_direct.yml
  • .github/ISSUE_TEMPLATE/test_request_runner.yml

Current template fields:

  • Template Version
  • Target Runner
  • Branch / Tag / Commit
  • category checklist
  • Setup Tools Checklist
  • Test Tools Checklist
  • Log Tools Checklist

Reference:


Python Bridge


Bridge script:

  • mcp/scripts/run_test_request.py

Role:

  1. parse Issue body
  2. validate MCP Server Mode
  3. validate Target Runner when mode is runner
  4. resolve checked category and tool list
  5. start the Local MCP Server subprocess
  6. call MCP tools
  7. save result JSON
  8. provide output for the final Issue comment step

Execution model:

  • run_test_request.py does not execute tools directly
  • resolve_server_module() selects the server module from the mode
  • direct maps to mcp.server_local_direct.server
  • runner maps to mcp.server_local_runner.server
  • call_local_mcp() starts python -m <server module> as a subprocess
  • JSON-RPC requests are sent over stdin
  • request order:
  • initialize
  • notifications/initialized
  • tools/list
  • tools/call
  • stdout is parsed to build the result JSON and Issue comment payload

Practical runner flow:

run_test_request.py
  -> start mcp.server_local_runner.server as subprocess
  -> send JSON-RPC request
  -> receive tool execution result
  -> write results/Github-ISSUE-TR-<issue_number>.json

flowchart TD
    A["run_test_request.py"] --> B["resolve_server_module()"]
    B --> C["mcp.server_local_runner.server<br/>subprocess"]
    A --> D["build JSON-RPC payload"]
    D --> C
    C --> E["initialize"]
    C --> F["tools/list"]
    C --> G["tools/call"]
    G --> H["tool execution result"]
    H --> I["results/Github-ISSUE-TR-<issue_number>.json"]
    H --> J["GitHub Issue comment payload"]


Server Resolution


Current resolution logic:

  • direct -> mcp.server_local_direct.server
  • runner -> mcp.server_local_runner.server

Current server names:

  • mcp-server-local-direct
  • mcp-server-local-runner


Tool Execution


Current tool set definition:

  • mcp/server_local/toolsets.py

Current tool catalog structure:

  • setup
  • test
  • log

Example tools:

  • check_version
  • setup_python
  • flash_tool
  • test_ping_00
  • test_ping_11
  • test_ping_22
  • get_serial_log
  • log_analyzer
  • log_snapshot

The TEST Request template is designed so that one Issue selects one category at a time.

The Python bridge runs the tools from the checked category in sequence and stores the combined result in one JSON file.

Status rule:

  • success if all tools succeed
  • error if any tool fails


Outputs


Current output directories:

  • results/logs/mcp/server_local/
  • results/

Current runtime log examples:

  • results/logs/mcp/server_local/runner.log
  • results/logs/mcp/server_local/runner-check_version.log
  • results/logs/mcp/server_local/runner-flash_tool.log
  • results/logs/mcp/server_local/runner-log_analyzer.log

Current Issue result JSON:

  • results/Github-ISSUE-TR-<issue_number>.json

Current result JSON fields:

  • request metadata
  • template version
  • resolved MCP server
  • selected tools
  • per-tool execution result
  • per-tool log path

The workflow uploads this file as an artifact and then formats it into an Issue comment.


Current Limitations


The current implementation is still closer to a test-focused local harness.

  • some tools are stubs
  • log file naming is tool-name based, not timestamp based
  • Issue comment formatting is handled by the workflow script
  • Issue-based flow depends on self-hosted runner availability

Current position:

  • practical Local MCP Server base
  • GitHub Issue based test harness
  • expandable to real build, flash, and log analysis behavior
